Recommended for: Digital Trunking

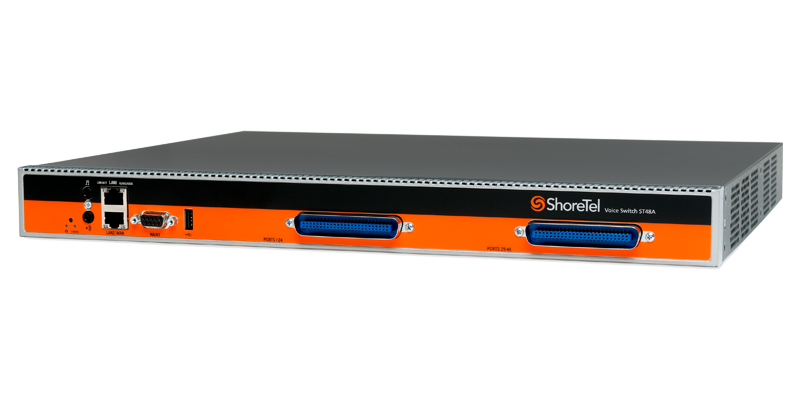

The ShoreTel Connect Voice Switch ST48A is a voice switch that supports 24 analog phones and voltage message waiting lamp support. The ShoreTel Voice Switch ST48A supports ShoreTel IP phones and softphones.
[ultimate_spacer height=”50″]
[ultimate_spacer height=”25″]
[ultimate_spacer height=”100″]
FEATURES
- 2 RJ-45 10/100/1000 Ethernet connectors
- 1 RJ-21x for bridging connections
- 48 FXS Telephone Extensions
- FXS REN support
- 1 DB-9 for maintenance
- Audio MOH input and Paging output
- UBB 2.0 A-Type
- Make me conferencing for up to 24 call legs
SPECIFICATIONS
DIMENSIONS
- 14.65 x 17.36 x 1.73 inches (372 x 212 x 42 mm)
WEIGHT
- 12.0 lb (5.4 kg)
INPUT VOLTAGE
- 100-240 VAC, 50-60 Hz
POWER CONSUMPTION
- 200 W (max)
ENVIRONMENTAL
- 0-90% relative humidity (non-condensing)
OPERATING TEMPERATURE
- -30-70° C
