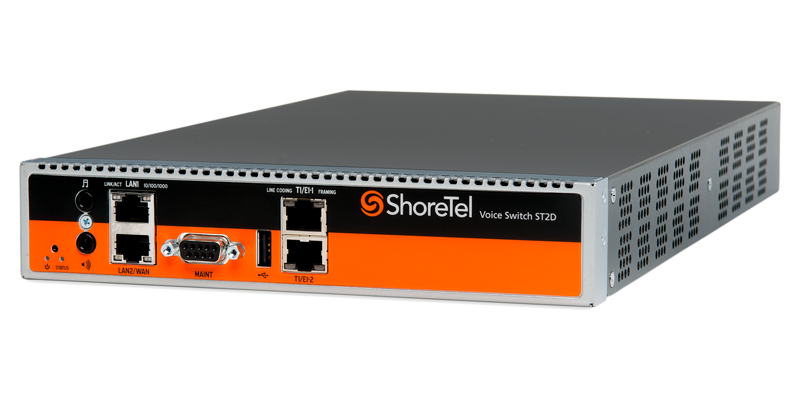

ShoreTel Voice Switch ST2D
[ultimate_spacer height=”25″]

Recommended for: Digital Trunking



The ShoreTel Connect Voice Switch ST2D is a voice switch that supports ShoreTel IP phones, softphones, and SIP devices.

[ultimate_spacer height=”100″]

FEATURES

  • 2 T1/E1 trunks with 48/60 ports
  • Integrated CSU
  • Line and Payload Loopbacks
  • 60 SIP Trunks
  • Facilities Data Link
  • 2 RJ-45 10/100/1000 Ethernet
  • 1 RJ-21X Analog
  • Audio MOH input and Paging
  • 2 T1/E1 (RJ-48C)
  • 1 DB-9
  • SIP trunking and extension support
  • USB 2.0 A-Type

SPECIFICATIONS



DIMENSIONS

  • 14.65 x 8.35 x 1.65 inches (372 x 212 x 42 mm)



WEIGHT

  • 5.3 lb (2.4 kg)



INPUT VOLTAGE

  • 100-240 VAC, 50-60 Hz



POWER CONSUMPTION

  • 65 W (max)



ENVIRONMENTAL

  • 5-90% relative humidity (non-condensing)



OPERATING TEMPERATURE

  • -30-70° C
