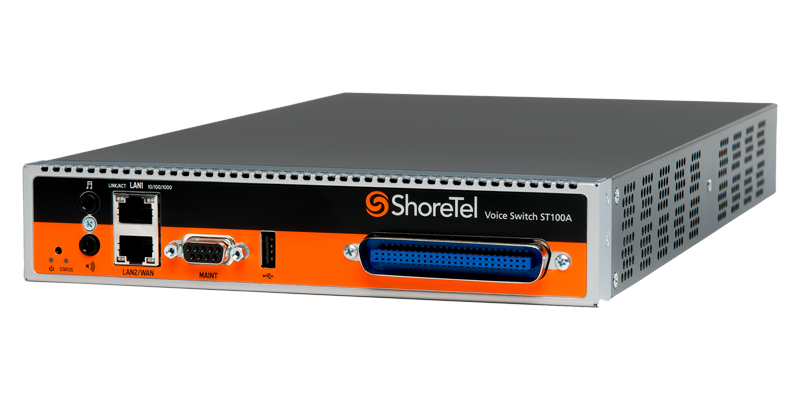

ShoreTel Voice Switch ST100A
[ultimate_spacer height=”25″]

Recommended for: Digital Trunking



The ShoreTel Connect Voice Switch ST100A is a voice switch that supports up to 100 IP phones, 8 loop start trunks, 6 extension ports and power fail transfer. The ShoreTel Voice Switch ST1000A supports ShoreTel IP phones, softphones, and SIP devices.

[ultimate_spacer height=”100″]

FEATURES

  • 2 RJ-45 10/100/1000 Ethernet connectors
  • 1 RJ-21X port for punchdown block, patch panel, or 12-port harmonica connector
  • 8 loop start trunk ports (FXO)
  • 6 analog extension ports (FXS)
  • 14 SIP trunks
  • 1 3.5 mm stereo input for connecting a music-on-hold source
  • 1 3.5 mm stereo output for connecting to a overhead paging system or night bell
  • Make me conferencing up to 12 parties
  • Maintenance (DB-9)

SPECIFICATIONS



DIMENSIONS

  • 14.65 x 8.35 x 1.65 inches (372 x 212 x 42 mm)



WEIGHT

  • 5.3 lb (2.4 kg)



INPUT VOLTAGE

  • 100-240 VAC, 50-60 Hz



POWER CONSUMPTION

  • 60 W (max)



ENVIRONMENTAL

  • 0-90% relative humidity (non-condensing)



OPERATING TEMPERATURE

  • 0-50° C
