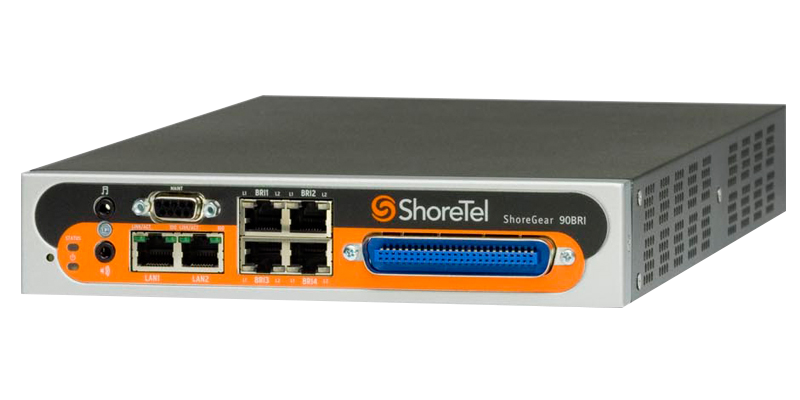

ShoreTel Voice Switch 90BRI
[ultimate_spacer height=”25″]

Recommended for: BRI Trunking



The ShoreTel Voice Switch 90BRI is a 1U half-width voice switch that supports up to 90 IP phones, up to eight BRI channels, and up to four analog extension ports. The ShoreTel Voice Switch 90BRI supports ShoreTel IP phones, softphones, and SIP devices.

[ultimate_spacer height=”100″]

FEATURES

  • 2 RJ-45 local area network (LAN) connectors
  • 1 RJ-21X port for punchdown block, patch panel, or 12-port harmonica connector
  • 4 analog extension ports (FXS)
  • 1 DB-9, RS-232C maintenance port for serial communications
  • Audio input and output (mini)
  • Supports SIP trunks and SIP devices
  • Maintenance (DB-9)

SPECIFICATIONS



DIMENSIONS

  • 1.69 x 8.39 x 14.28 inches (4.3 x 21.3 x 37.8 cm)



WEIGHT

  • 5.3 lb (2.4 kg)



INPUT VOLTAGE

  • 100-240 VAC, 50-60 Hz



POWER CONSUMPTION

  • 23 W (max)



ENVIRONMENTAL

  • 0-90% relative humidity (non-condensing)



OPERATING TEMPERATURE

  • 0-50° C
