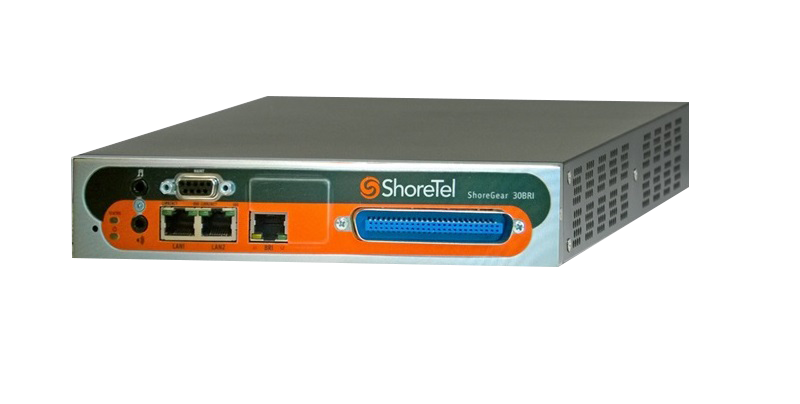

ShoreTel Voice Switch 30BRI
[ultimate_spacer height=”25″]

Recommended for: BRI Trunking



The ShoreTel Voice Switch 30BRI is a 1U half-width voice switch that supports up to 30 IP phones, up to two BRI channels, and up to two analog extension ports. The ShoreTel Voice Switch 30BRI supports ShoreTel IP phones, softphones, and SIP devices.

[ultimate_spacer height=”100″]

FEATURES

  • 30 voicemail mailboxes with a total of 22 hours of voicemail storage
  • 2 RJ-45 local area network (LAN) connectors
  • 1 RJ-21X analog port
  • 4 Loop start trunk ports (FXO)
  • 2 Analog Extension Ports
  • 2 Telephone Ports (FXS)
  • 1 DB-9 maintenance port
  • Audio input and output (mini)
  • Supports SIP trunks and SIP devices

SPECIFICATIONS



DIMENSIONS

  • 1.69 x 8.39 x 14.28 inches (43 x 213 x 378 mm)



WEIGHT

  • 5.3 lb (2.4 kg)



INPUT VOLTAGE

  • 100-240 VAC, 50-60 Hz



POWER CONSUMPTION

  • 22 W (max)



ENVIRONMENTAL

  • 0-90% relative humidity (non-condensing)



OPERATING TEMPERATURE

  • 0-50° C
