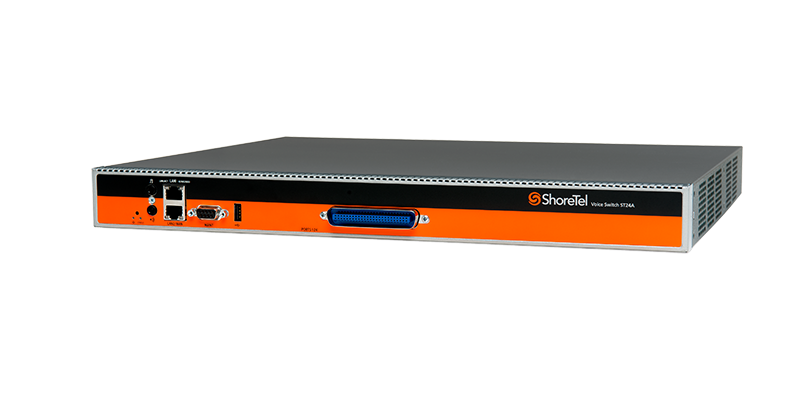

ShoreTel Voice Switch ST24A
[ultimate_spacer height=”25″]

Recommended for: Digital Trunking



The ShoreTel Connect Voice Switch ST24A is a voice switch that supports 24 analog phones and voltage message waiting lamp support. The ShoreTel Voice Switch ST24A supports ShoreTel IP phones and softphones.

[ultimate_spacer height=”100″]

FEATURES

  • 2 RJ-45 10/100/1000 Ethernet connectors
  • 1 RJ-21x for bridging connections
  • 24 FXS Telephone Extensions
  • FXS REN support
  • 1 DB-9 for maintenance
  • Audio MOH input and Paging output
  • UBB 2.0 A-Type
  • Make me conferencing for up to 24 call legs

SPECIFICATIONS



DIMENSIONS

  • 14.65 x 17.36 x 1.73 inches (372 x 212 x 42 mm)



WEIGHT

  • 12.0 lb (5.4 kg)



INPUT VOLTAGE

  • 100-240 VAC, 50-60 Hz



POWER CONSUMPTION

  • 125 W (max)



ENVIRONMENTAL

  • 0-90% relative humidity (non-condensing)



OPERATING TEMPERATURE

  • -30-70° C
